Tandem arc welding



PhD student: Margarita Sass-Tisovskaya
margarita-sass-tisovskaya@hv.se
Examiner: Lars Davidson
lada@chalmers.se
Supervisor: Dr Isabelle Choquet
isabelle.choquet@hv.se
Co-supervisor: Dr. Håkan Nilsson
hani@chalmers.se
Cooperation: Högskolan Väst, ESAB, Volvo Construction Equipment, SSAB, Migatronic
Sponsors: KK-foundation, ESAB, Volvo Construction Equipment, SSAB
Publications: [-]
Start of project: September 2006


BACKGROUND
Welding is a manufacturing process developed to join materials, most commonly metals. It is based on a heat source used to melt a work piece, and form a molten pool. A filler material is often added to fill in the pool. During cooling, the pool becomes a strong joint. Most of the manufacturing applications use electric discharges as heat source. Recent developments are based on laser heat source, but they are still seldom implemented in production.

Tandem arc welding is a rather recent advance in electric discharge welding technology, whose main characteristic is the use of a double heat source: two electric arcs. The related electrical circuits are independent, each with their own power source, and wire. The wires act as electrodes (or contact tips) and provide the filler material. The two contact tips are contained in a common torch body, and surrounded by a common shielding gas (a turbulent flow mainly made of Argon). The two wires may differ in diameter and composition since parameters such as arc voltage can be set independently on each wire. The type of arc interaction, the amount of heat transferred to the work piece, and the pressure force applied on the molten pool depend on electrical, material, and geometrical parameters (tip shape, angle and distance between tips). The arcs usually have different functions: the leading arc heats both wire and base metal to form a molten pool, whereas the trail arc melts the second wire to fill up the pool and smooth the surface of the weld.

Tandem arc welding results in highly increased deposition efficiency. However, the process stability is still a critical issue. The arcs may indeed blow up while passing close to, or turning around, a metallic piece. A better understanding and control of the process is thus needed to extend its applicability. The operating conditions are extreme, with a temperature rise from room temperature to about 25 000K within a few millimetres, which corresponds to plasma fluid. The imposed electric and induced magnetic forces are driving forces for the plasma flow. The experimental characterisation of an electric arc is a difficult task that needs to be supported by numerical simulations. The existing simulation tools, developed for steady, axisymmetric single arc welding (TIG - Tungsten inert gas) with laminar shielding gas, involve simplifying assumptions that do not apply to the present problem.

PROJECT

The first part of the project is to develop a model and simulation tool valid within the frame of tandem arcs (unsteady, three dimensional thermal plasma flow). The model implementation is being done in the open-source CFD software OpenFOAM
.

Research carried out until fall 2009:

  • A thermo physical table for argon at a wide temperature span has been implemented
  • The Lorenz force has been added to the momentum equations
  • Joule heating, radiation loss, and enthalpy transport by ambipolar diffusion of electrons have been implemented in the energy equation.
  • The electric potential equation and the magnetic potential equations have been implemented and validated for a simple cylindrical conductor in a surrounding.

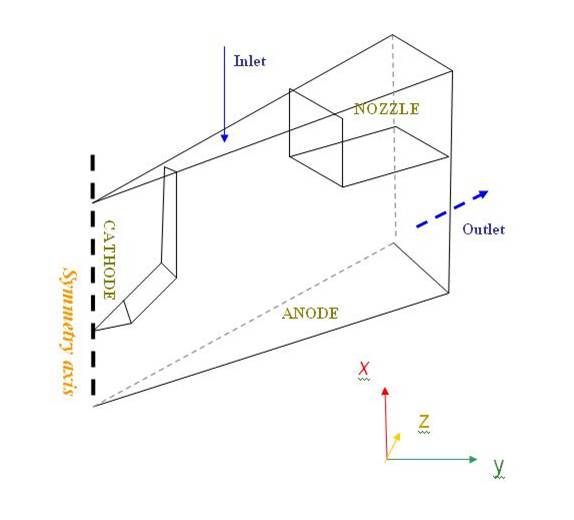

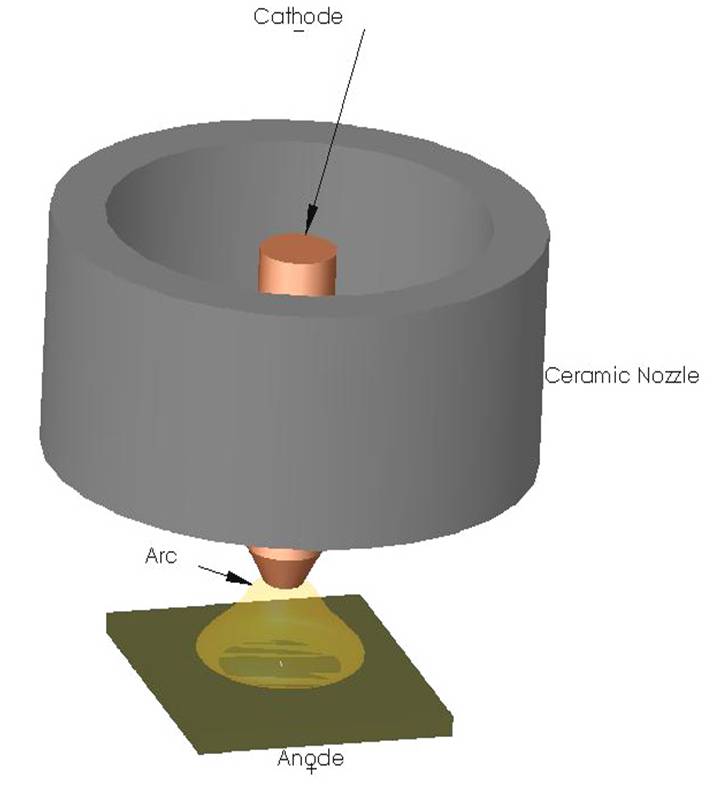

A TIG test case is being investigated, as seen in the following figures. arc welding arc welding The main assumptions in these simulations are that:
  • The simulations are 2D axi-symmetric (but the implementations are 3D)
  • The shielding gas is argon
  • 200A electric current
  • Cathode tip is at 20,000K
  • The plasma is a Newtonial fluid
  • The plasma is locally electrically neutral
  • The plasma column is in local thermodynamic equilibrium (LTE)
  • The plasma flow is laminar
  • Heat dissipation is negligible
  • No added filler material
  • Steady-state, no phase-change
The following figures show some results from the simulations:

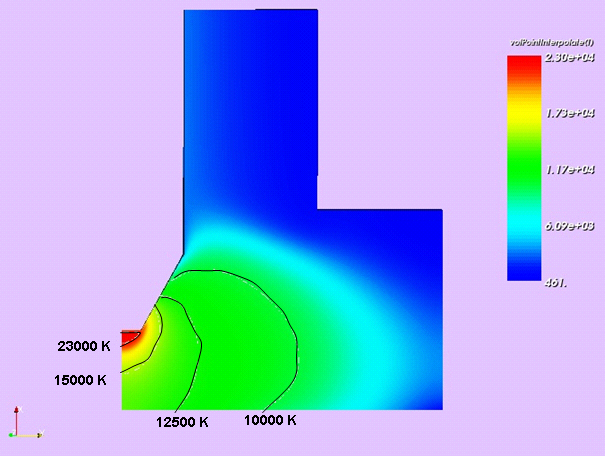

Temperature distribution:
arc welding

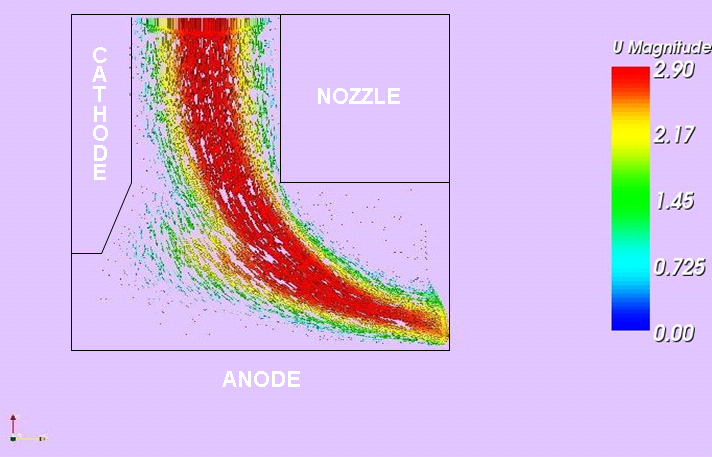

Velocity distribution WITHOUT the effects of the electromagnetic field (note max velocity 2.9m/s):
arc welding

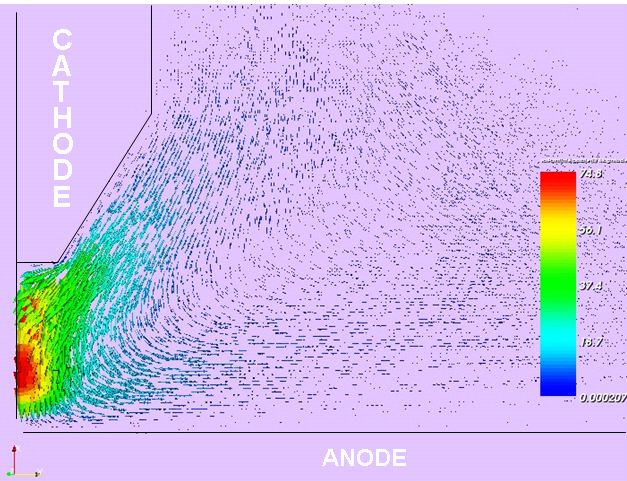

Velocity distribution WITH the effects of the electromagnetic field (note max velocity 75m/s, which is in fact even too low):
arc welding

In parallel, experiments are done in collaboration with industrial partners to prepare a data base for model validation. The resulting simulation software will be applied to well documented single arc test cases for validation purposes, as well as to a recent experimental investigation of TIG-TIG tandem arc. It will then be applied to the MAG-MAG (Metal Active Gas) tandem arc currently used in manufacturing, to improve the understanding of the underlying physics.






REFERENCES
  1. Sass-Tisovskaya, M.
    "Plasma Arc Welding Simulation with OpenFOAM", thesis of Lic. of Engng,, Division of Fluid Dynamics, Dept. of Applied Mechanics, Chalmers University of Technology, Göteborg, Sweden, 2009.
    View PDF file of thesis
